Battery Cages for Broiler Chicken
1. The mesh is smooth to prevent foot infections from injured chickens.
2. Encryption of the partition net and the bottom net can effectively prevent the fatigue syndrome of pecking feathers and anus and laying hens.
3. The mesh is galvanized to increase the service life. (Currently galvanizing is divided into cold galvanized, hot-dip galvanized wire, and hot galvanizing )
4. High-density breeding saves land, is conducive to epidemic prevention and reduces the incidence of poultry diseases.
5. The unique large door reinforcement design effectively prevents the chickens from shaking their heads and wasting feed when they eat. The space of the cage door is enlarged, which is convenient for various operations of the chicken.
6. Expansibility: It can be adjusted appropriately according to the size of the venue, and automatic drinking water system can be matched;
7. The chicken manure conveyor belt is installed at the bottom, which effectively solves the pollution in the chicken house, and directly transports the manure to the outdoors, reducing manual input.

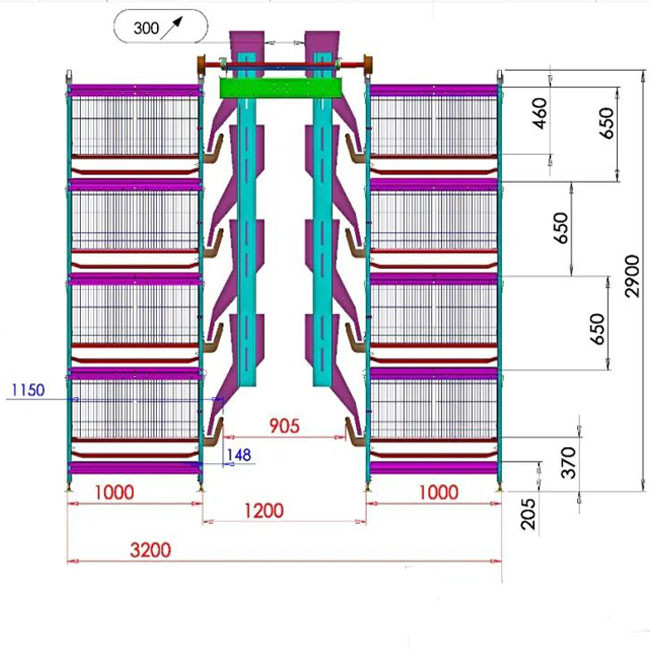

| H Type Chicken Battery Cage |
| H Type Broiler Battery Cage | H Type Layer Battery Chicken Cage |
| Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty | Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty |
| 3 | 100x100x44 | 100x100x220 | 60 | 3 | 65x62.5x50 | 65x125x222 | 54 |
| 4 | 100x100x44 | 100x100x285 | 80 | 4 | 65x62.5x50 | 65x125x287 | 72 |
| 3 | 100x150x44 | 100x150x220 | 90 | 5 | 65x62.5x50 | 65x125x352 | 90 |
| 4 | 100x150x44 | 100x150x285 | 120 | 6 | 65x62.5x50 | 65x125x417 | 108 |
| 3 | 148x175x44 | 148x175x280 | 144 | 8 | 65x62.5x50 | 65x125x547 | 144 |
| 4 | 148x175x44 | 148x175x360 | 192 | 3 | 43x60x41 | 183x120x214 | 144 |
| | | | | 4 | 43x60x41 | 183x120x279 | 192 |
| | | | | 5 | 43x60x41 | 183x120x344 | 240 |
| | | | | 6 | 43x60x41 | 183x120x409 | 288 |
| | | | | 8 | 43x60x41 | 183x120x539 | 384 |
