Battery Hen Farm Layer Chicken Coop Modern Hens Cage For Sale

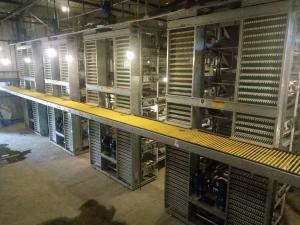

Hot Galvanized H Type Layer Chicken Coop Battery Cage System Laying Hens
H Type Layer Chicken Coop Cage Characteristics:
A full set of automated H type layer chicken coop cage system has the features of long service life, high functional reliability, and user-friendly management and operation.
1. The surface treatment of the battery cage is hot-dipped galvanizing adopted with 400um thickness for zinc-layer, and the corrosion resistance is 3-4 times that of the general surface treatment;
2. The cage door is a sliding grille, which can be opened easily, making the chicken in and out easier and more humane;
3. The egg buffer device can hinder the egg when it rolls down quickly, so that the eggs can safely fall on the egg belt, to reduce the egg breakage rate effectively;
4. Adopt V-shaped feed trough to minimize food waste;
5. Adopt q235 low carbon wire mesh to make the bottom mesh rebound slowly after deformation to keep the eggs in good condition.
6. Nipples are designed on the edge of the side mesh, and each hen can easily reach the nipples.
7. The replaceable bottom mesh increases the convenience of maintenance and makes the maintenance of the cage system more efficient.
H Type Layer Chicken Coop Cage Size:
| Tiers/Foors | Each Door Size(mm) | Unit Cage Size(mm) | Birds Qty |
| 3 | 650x600x500 | 650x2100x2700 | 54 |
| 4 | 650x600x500 | 650x2100x3200 | 72 |
| 5 | 650x600x500 | 650x2100x3900 | 90 |
| 6 | 650x600x500 | 650x2100x4600 | 108 |
| 8 | 650x600x500 | 650x2100x5300 | 144 |
| 3 | 430x600x410 | 1800x2100x2700 | 144 |
| 4 | 430x600x410 | 1800x2100x3200 | 192 |
| 5 | 430x600x410 | 1800x2100x3900 | 240 |
| 6 | 430x600x410 | 1800x2100x4600 | 288 |
| 8 | 430x600x410 | 1800x2100x5300 | 384 |
| Equipment | H Type Layer Chicken Coop Battery Cage System Hens, Frame, Feed Trough, Auto Drinking Lines,Automatic Feeding System, Automatic Egg Collection System, Automatic Manure Removal System, Automatic Ventilation System, Environmental Controller |
Layer Cage Parameter:
| Layer Cage Body | 1. Size: 65x62.5x50cm, 183x60x41mm; 2. Material: Hot dipped galvanized; 3. Feed trough:Zn-Al material. Thickness: 1.0mm. 4. Can be designed into 3, 4, 5, 6, 8, 9, 10 Tiers; 5. Capacity:54-384 birds/set |
| Automatic Hopper Feeding Machine Equipment | 1. Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel 2. Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute. 3. Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm. 4. Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm. 5. Silos |
| Automatic Drinking System | 1. Nipple Drinkers 2. Water Pipes 3. Water Pressure regulator 4. Filter 5. Medical pump |
| Automatic Egg Collecting Machine | 1. Hot-dip galvanized 1.5mm side plate,speed 4m/min. 2. Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device. 3. Egg belt:100mm width 4. Crosswise egg conveyor |
| Automatic Poultry Manure Removal Machine | 1. Belt type manure cleaning machine:Hot-dip galvanized 2. Manure cleaning belt:Material is PP, Thickness is 1.2mm.Width is 1.2m/ 1.25m. 3. Bracket for manure cleaning belt:hot-dip galvanized steel, 1.5mm thickness. 4. Transverse manure conveying |
| Environmental Controller | Fans, cooling pad, air inlets, intelligent controller |
H Type Layer Chicken Coop Cage Size:
| Tiers/Foors | Each Door Size(mm) | Unit Cage Size(mm) | Birds Qty |
| 3 | 650x600x500 | 650x2100x2700 | 54 |
| 4 | 650x600x500 | 650x2100x3200 | 72 |
| 5 | 650x600x500 | 650x2100x3900 | 90 |
| 6 | 650x600x500 | 650x2100x4600 | 108 |
| 8 | 650x600x500 | 650x2100x5300 | 144 |
| 3 | 430x600x410 | 1800x2100x2700 | 144 |
| 4 | 430x600x410 | 1800x2100x3200 | 192 |
| 5 | 430x600x410 | 1800x2100x3900 | 240 |
| 6 | 430x600x410 | 1800x2100x4600 | 288 |
| 8 | 430x600x410 | 1800x2100x5300 | 384 |
| Equipment | H Type Layer Chicken Coop Battery Cage System Hens, Frame, Feed Trough, Auto Drinking Lines,Automatic Feeding System, Automatic Egg Collection System, Automatic Manure Removal System, Automatic Ventilation System, Environmental Controller |
