Hot Dipped Galvanized 6mm Manure Removal Equipment Siemens Motor

Hot Dipped Galvanized Poultry Manure Removal System Automated

Automated Poultry Manure Removal System Description

Poultry manure removal system main frame adopts hot dipped galvanized steel sheet or zinc-aluminum board with a high quality and longer life service. Logitudinal belt use 1.2mm thickness white pp material, transfer the manure directly to the end machine dropped onto transversal conveyor. Transversal belt conveyor adopts 6mm green rubber material, transporting the manure to outside of house onto the truck and drive away, fully automated working of poultry farm battery chicken cages.

Automated Poultry Manure Removal Cleaning Equipment Working Mehods

When the manure cleaning machine is starts, the manure cleaning machine is operated by the motor and reducer through the automatic rollers of each layer of the chain. The friction force is generated under the forced roller and the automatic roller, and the manure-bearing belt moves along the cage group. Moving in the length direction, the chicken manure is transported to end part, and it is scraped off by the manure scraper set at the end, and then the manure cleaning work is completed.

The conveyor belt type manure cleaner uses the most advanced national standard cycloidal pinwheel reducer to ensure the rationality of the output transmission ratio. The overall surface of the drive roller of manure cleaner is covered with rubber, which increases the friction and can effectively solve the manure removal. With the problem of deviation, and at the same time extend the use time of the manure belt, manure cleaner will install an inclined scraper at the tail of each manure belt, and install two secondary scrapers under the response of the manure belt rotation. Makes the feces cleaned more thoroughly.

Transversal/lateral chicken manure conveyor belt collects the chicken manure dropped due to gravity on the manure belt and sends the chicken manure out of poultry shed. The crosswise chicken manure conveyor belt is installed in a special channel or pit.

Chicken manure lifting belt collects the chicken manure on transversal conveyor belt and transports it to the height of the chicken manure truck.

Hot Dipped Galvanized Poultry Manure Removal System Specification

6mm manure removal equipment

Siemens Motor manure removal equipment

HDG poultry tools and equipments

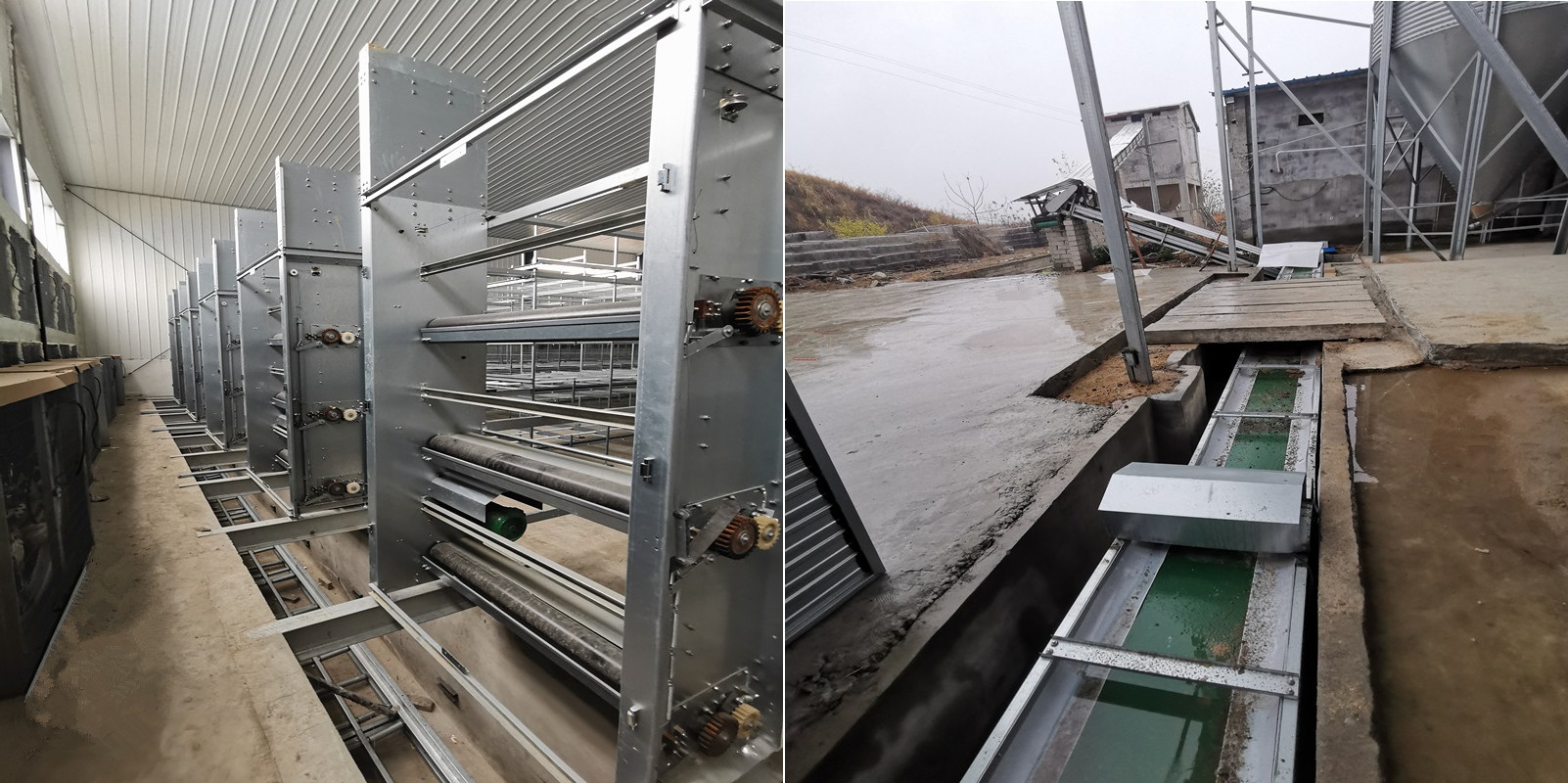

Hot Dipped Galvanized 6mm Manure Removal Equipment Siemens Motor Images
